A300-5 is an external rotor axial fans fan from the SENYING AC catalog.
- Model: A300-5
- Type: AC External Rotor Fan
- Certification: IP54, CCC/CE/RoHS/UL

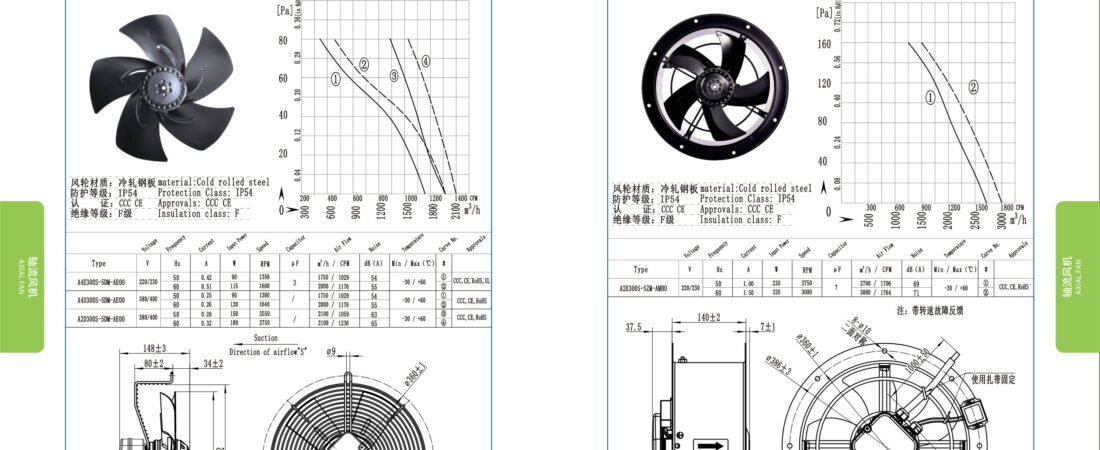

Full technical specifications are shown in the catalog image. Contact us for detailed datasheets and drawings.
Technical Specifications
| Model Code | Voltage (V) | Frequency (Hz) | Current (A) | Power (W) | Speed (rpm) | Capacitor (µF) | Airflow (m³/h) | Airflow (CFM) | Noise (dB) | Temp (°C) |
|---|---|---|---|---|---|---|---|---|---|---|
| A2D300S-5DM-AE00 | 380/400 | 50 | 0.28 | 150 | 2550 | 21001059 | 63 | -30 / +60 | ||
| A2D300S-5DM-AE00 | 380/400 | 60 | 0.32 | 180 | 2750 | 1 | 2100 1236 | 65 | -30 / +60 | |
| A2E300S-5ZM-AMH0 | 220/230 | 50 | 1.00 | 220 | 2750 | 7 | 2700 1706 | 69 | -30 / +60 | |
| A2E300S-5ZM-AMH0 | 220/230 | 60 | 1.50 | 320 | 3000 | 3000 1764 | 71 | -30 / +60 | ||
| A4D300S-5DM-AE00 | 380/400 | 50 | 0.25 | 90 | 1380 | 1 | 1750 | 1029 | 54 | -30 / +60 |
| A4D300S-5DM-AE00 | 380/400 | 60 | 0.26 | 120 | 1640 | 20000 | 1176 | 55 | -30 / +60 | |
| A4E300S-5DM-AE00 | 220/230 | 50 | 0.42 | 90 | 1350 | 1750 | 1029 | 54 | -30 / +60 | |
| A4E300S-5DM-AE00 | 220/230 | 60 | 0.51 | 115 | 1600 | 3 | 2000 | 1176 | 55 | -30 / +60 |
