A350-5 is an external rotor axial fans fan from the SENYING AC catalog.
- Model: A350-5
- Type: AC External Rotor Fan
- Certification: IP54, CCC/CE/RoHS, SUS

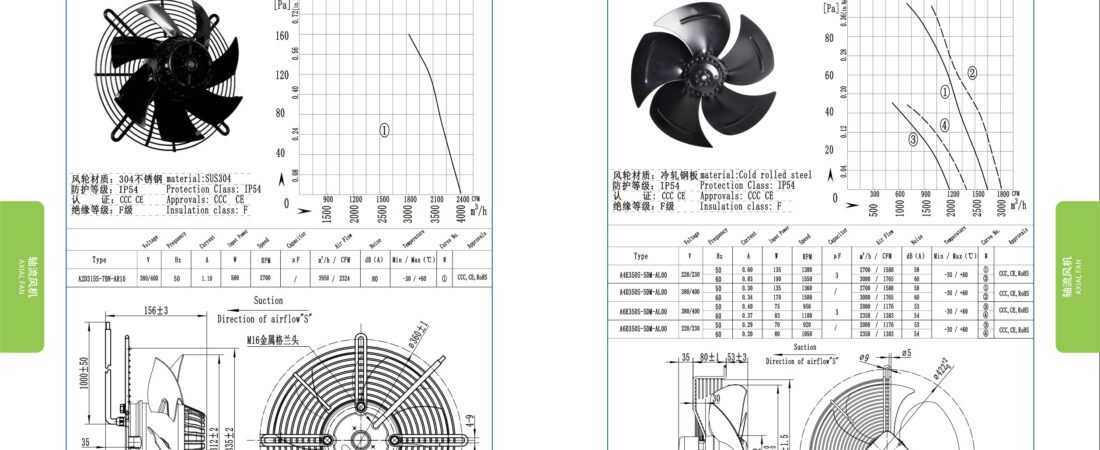

Full technical specifications are shown in the catalog image. Contact us for detailed datasheets and drawings.
Technical Specifications
| Model Code | Voltage (V) | Frequency (Hz) | Current (A) | Power (W) | Speed (rpm) | Capacitor (µF) | Airflow (m³/h) | Airflow (CFM) | Noise (dB) | Temp (°C) |
|---|---|---|---|---|---|---|---|---|---|---|
| A4D350S-5DM-AL00 | 380/400 | 50 | 0.30 | 135 | 1360 | 1 | 2700 | 1588 | 58 | -30 / +60 |
| A4D350S-5DM-AL00 | 380/400 | 60 | 0.34 | 170 | 1500 | 1 | 3000 | 1765 | 60 | -30 / +60 |
| A4D350S-5DM-AM00 | 380/400 | 50 | 0.48 | 180 | 1380 | 3400 | 2001 | 60 | -30 / +60 | |
| A4D350S-5DM-AM00 | 380/400 | 60 | 0.65 | 260 | 1550 | 3800 2237 | 61 | -30 / +60 | ||
| A4E350S-5DM-AL00 | 220/230 | 50 | 0.60 | 135 | 1380 | 2700 | 1588 | 58 | -30 / +60 | |
| A4E350S-5DM-AL00 | 220/230 | 60 | 0.83 | 190 | 1550 | 3000 | 1765 | 60 | -30 / +60 | |
| A4E350S-5DM-AM00 | 220/230 | 50 | 0.80 | 180 | 1380 | 6 | 3400 2001 | 60 | -30 / +60 | |
| A4E350S-5DM-AM00 | 220/230 | 60 | 1.20 | 260 | 1550 | 3800 2237 | 61 | -30 / +60 | ||
| A6D350S-5DM-AL00 | 220/230 | 50 | 0.29 | 70 | 920 | 1 | 2000 1176 | 53 | -30 / +60 | |
| A6D350S-5DM-AL00 | 220/230 | 60 | 0.20 | 80 | 1050 | 2350 1383 | 54 | -30 / +60 | ||
| A6E350S-5DM-AL00 | 380/400 | 50 | 0.40 | 75 | 950 | 2000 | 1176 | 53 | -30 / +60 | |
| A6E350S-5DM-AL00 | 380/400 | 60 | 0.37 | 83 | 1100 | 2350 | 1383 | 54 | -30 / +60 |
