A500-4 is an external rotor axial fans fan from the SENYING AC catalog.
- Model: A500-4
- Type: AC External Rotor Fan
- Certification: IP66, CCC/CE/RoHS, Aluminium

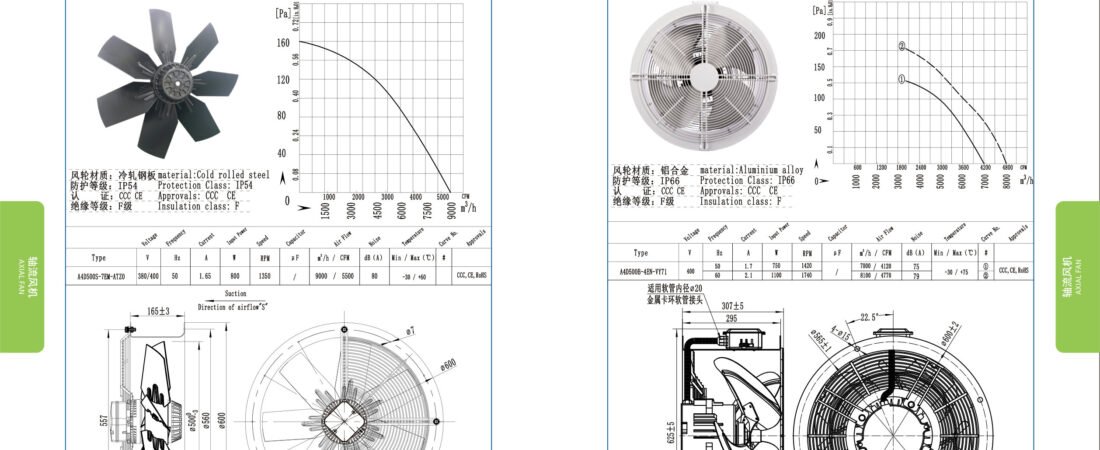

Full technical specifications are shown in the catalog image. Contact us for detailed datasheets and drawings.
Technical Specifications
| Model Code | Voltage (V) | Frequency (Hz) | Current (A) | Power (W) | Speed (rpm) | Capacitor (µF) | Airflow (m³/h) | Airflow (CFM) | Noise (dB) | Temp (°C) |
|---|---|---|---|---|---|---|---|---|---|---|
| A4D500B-4EN-VY71 | 400 | 50 | 1.7 | 750 | 1420 | 7000 4120 | 75 | -30 / +75 | ||
| A4D500B-4EN-VY71 | 400 | 60 | 2.1 | 1100 | 1740 | 1 | 8100 4770 | 79 | -30 / +75 |
