B225-62 is an external rotor b-series backward-curved centrifugal fan from the SENYING AC catalog.
- Model: B225-62
- Type: AC External Rotor Fan
- Certification: CCC/CE/RoHS

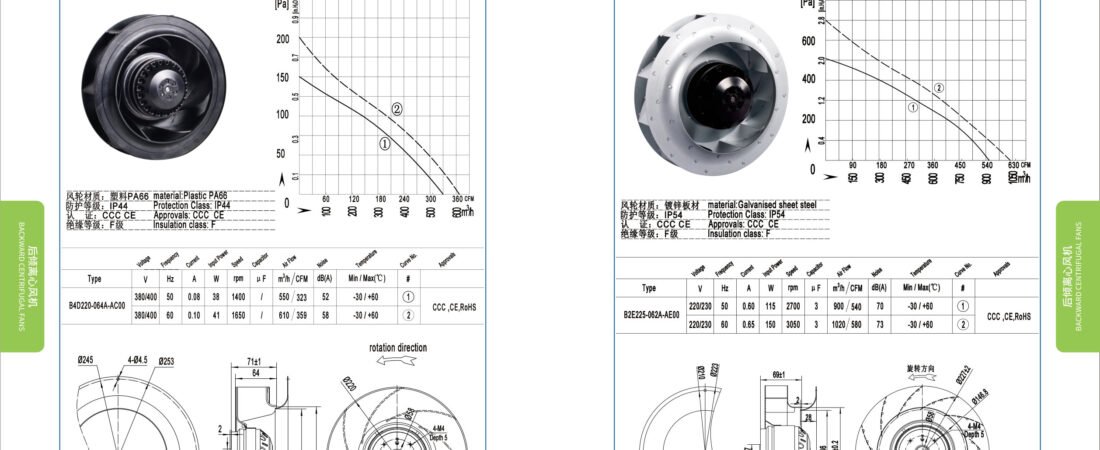

Full technical specifications are shown in the catalog image. Contact us for detailed datasheets and drawings.
Technical Specifications
| Model Code | Voltage (V) | Frequency (Hz) | Current (A) | Power (W) | Speed (rpm) | Airflow (m³/h) | Airflow (CFM) | Noise (dB) | Temp (°C) |
|---|---|---|---|---|---|---|---|---|---|
| B2E225-062A-AE00 | 220/230 | 50 | 0.60 | 115 | 2700 | 900 | 540 | 70 | -30/+60 |
| B2E225-062A-AE00 | 220/230 | 60 | 0.65 | 150 | 3050 | 1020 | 580 | 73 | -30/+60 |
