B250-084 is an external rotor b-series backward-curved centrifugal fan from the SENYING AC catalog.
- Model: B250-084
- Type: AC External Rotor Fan
- Certification: CCC/CE/RoHS

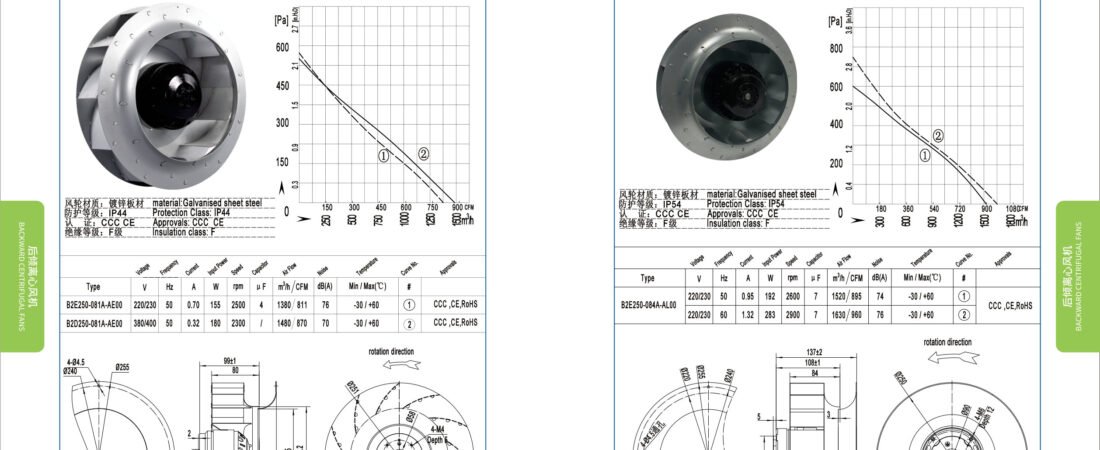

Full technical specifications are shown in the catalog image. Contact us for detailed datasheets and drawings.
Technical Specifications
| Model Code | Voltage (V) | Frequency (Hz) | Current (A) | Power (W) | Speed (rpm) | Airflow (m³/h) | Airflow (CFM) | Noise (dB) | Temp (°C) |
|---|---|---|---|---|---|---|---|---|---|
| B2E250-084A-AL00 | 220/230 | 50 | 0.95 | 192 | 2600 | 1520 | 895 | 74 | -30/+60 |
| B2E250-084A-AL00 | 220/230 | 60 | 1.32 | 283 | 2900 | 1630 | 960 | 76 | -30/+60 |
