B450-151 is an external rotor b-series backward-curved centrifugal fan from the SENYING AC catalog.
- Model: B450-151
- Type: AC External Rotor Fan
- Certification: CCC/CE/RoHS

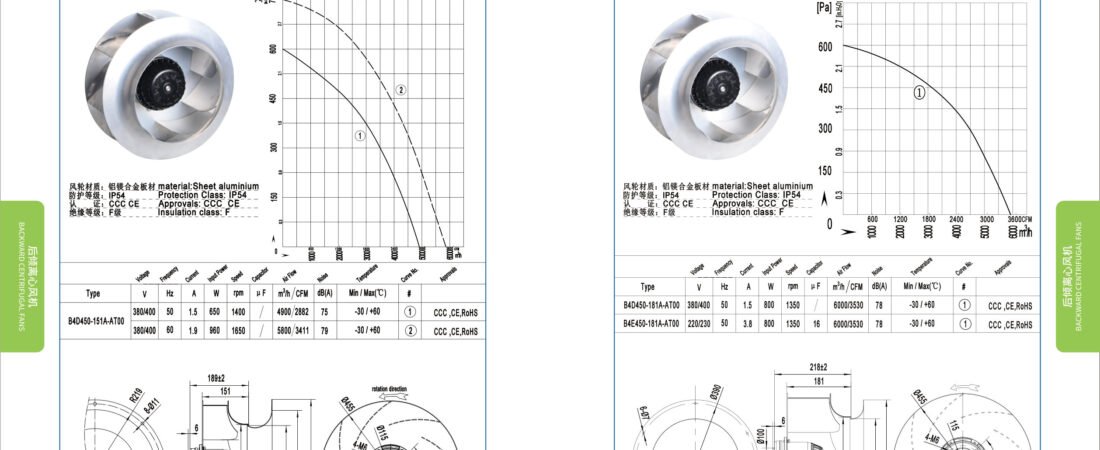

Full technical specifications are shown in the catalog image. Contact us for detailed datasheets and drawings.
Technical Specifications
| Model Code | Voltage (V) | Frequency (Hz) | Current (A) | Power (W) | Speed (rpm) | Airflow (m³/h) | Airflow (CFM) | Noise (dB) | Temp (°C) |
|---|---|---|---|---|---|---|---|---|---|
| B4D450-151A-AT00 | 380/400 | 50 | 1.5 | 650 | 1400 | 4900 | 2882 | 75 | -30/+60 |
| B4D450-151A-AT00 | 380/400 | 60 | 1.9 | 960 | 1650 | 5800 | 3411 | 79 | -30/+60 |
