B500-159 is an external rotor b-series backward-curved centrifugal fan from the SENYING AC catalog.
- Model: B500-159
- Type: AC External Rotor Fan
- Certification: CCC/CE/RoHS, Aluminium

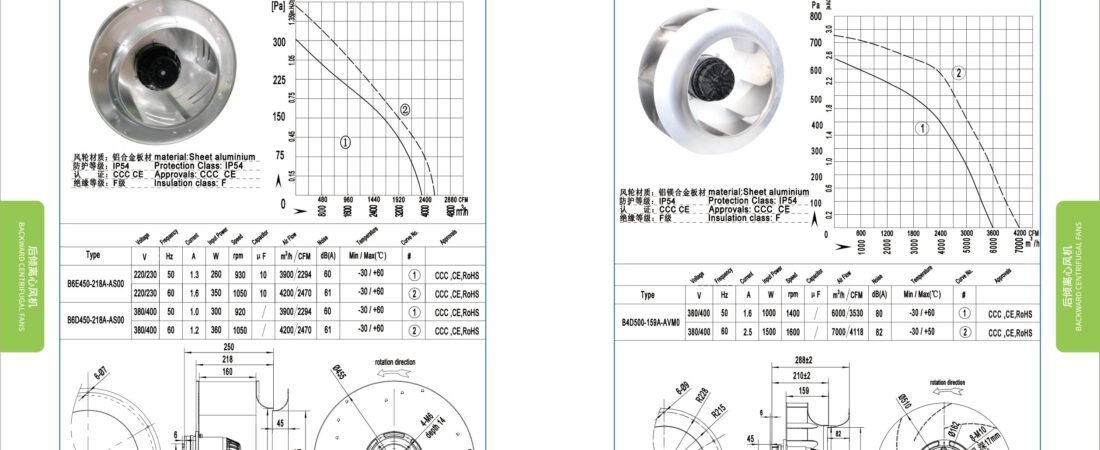

Full technical specifications are shown in the catalog image. Contact us for detailed datasheets and drawings.
Technical Specifications
| Model Code | Voltage (V) | Frequency (Hz) | Current (A) | Power (W) | Speed (rpm) | Airflow (m³/h) | Airflow (CFM) | Noise (dB) | Temp (°C) |
|---|---|---|---|---|---|---|---|---|---|
| B4D500-159A-AVM0 | 380/400 | 50 | 1.6 | 1000 | 1400 | 6000 | 3530 | 80 | -30/+60 |
| B4D500-159A-AVM0 | 380/400 | 60 | 2.5 | 1500 | 1600 | 7000 | 4118 | 82 | -30/+50 |
