Axial fan built on an external-rotor motor platform. High airflow at low static pressure — ideal for ventilation, condenser and cooling applications.

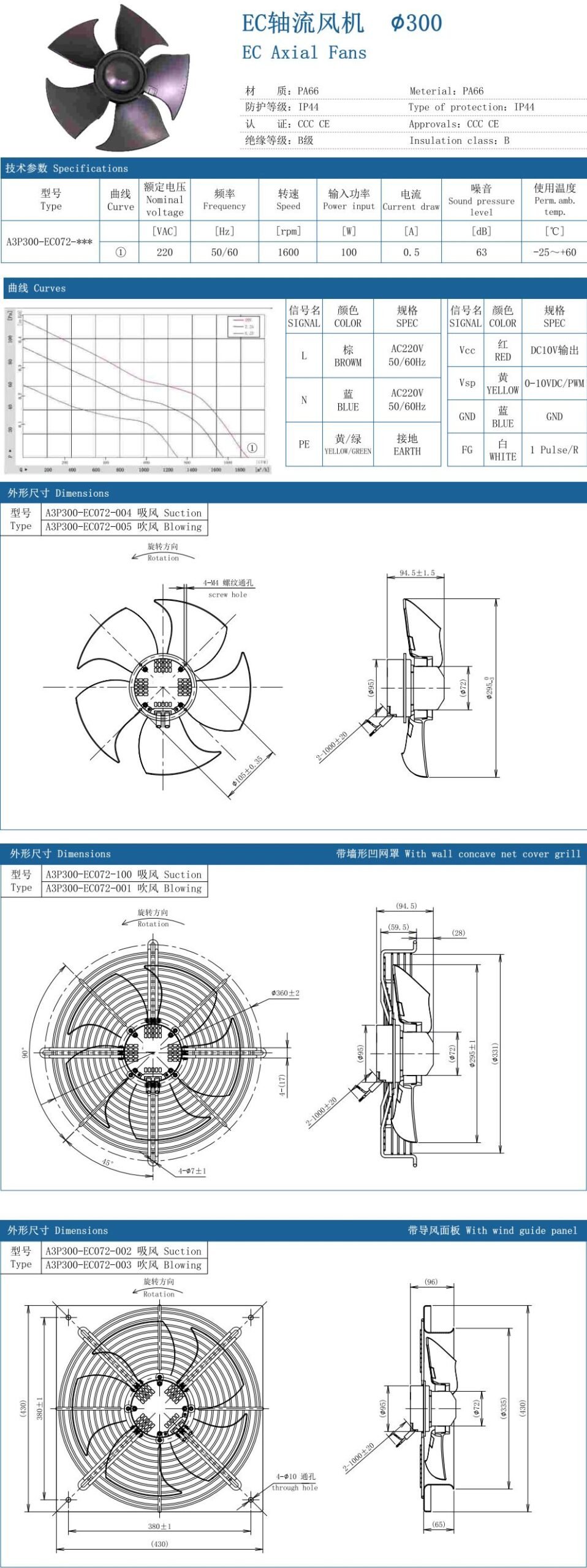

Technical Specifications
| Model Code | Curve | Voltage (V) | Frequency (Hz) | Speed (rpm) | Power (W) | Current (A) | Noise (dB) | Temp (°C) |
|---|---|---|---|---|---|---|---|---|
| A3P300-EC072-*** | ① | 220 | 50/60 | 1400 | 80 | 0.57 | 63 | -25~+60 |
| A3P300-EC092-04* | ① | 220 | 50/60 | 2100 | 165 | 1.2 | 65 | -25~+60 |
