F120-042 is an external rotor f-series backward-curved centrifugal fan from the SENYING AC catalog.
- Model: F120-042
- Type: AC External Rotor Fan
- Certification: IP44, CCC/CE/RoHS, Galvanized

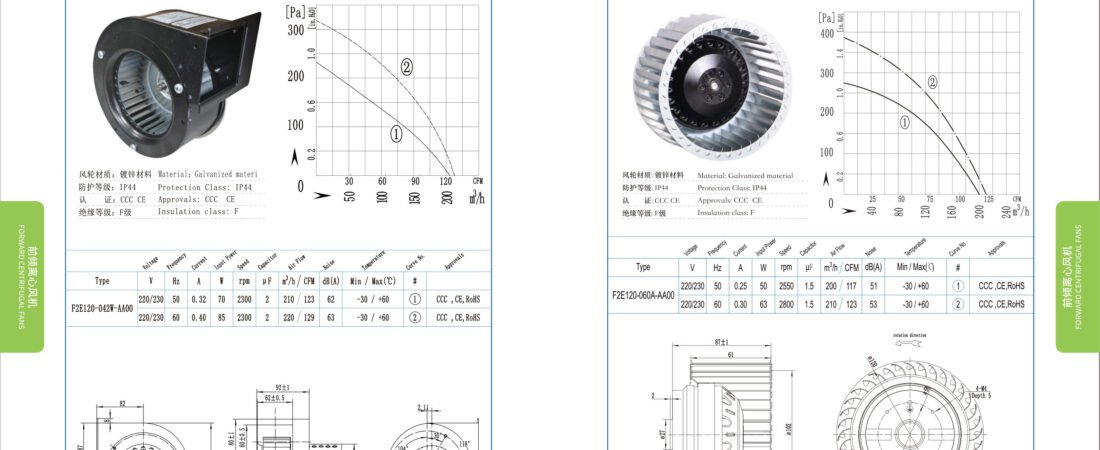

Full technical specifications are shown in the catalog image. Contact us for detailed datasheets and drawings.
Technical Specifications
| Model Code | Voltage (V) | Frequency (Hz) | Current (A) | Power (W) | Speed (rpm) | Airflow (m³/h) | Airflow (CFM) | Noise (dB) | Temp (°C) |
|---|---|---|---|---|---|---|---|---|---|
| F2E120-042W-AA00 | 220/230 | 50 | 0.32 | 70 | 2300 | 210 | 123 | 62 | -30 / +60 |
| F2E120-042W-AA00 | 220/230 | 60 | 0.40 | 85 | 220 | 129 | 63 | -30 / +60 |
