F280-103 is an external rotor f-series backward-curved centrifugal fan from the SENYING AC catalog.
- Model: F280-103
- Type: AC External Rotor Fan
- Certification: IP54, CCC/CE/RoHS, Galvanized

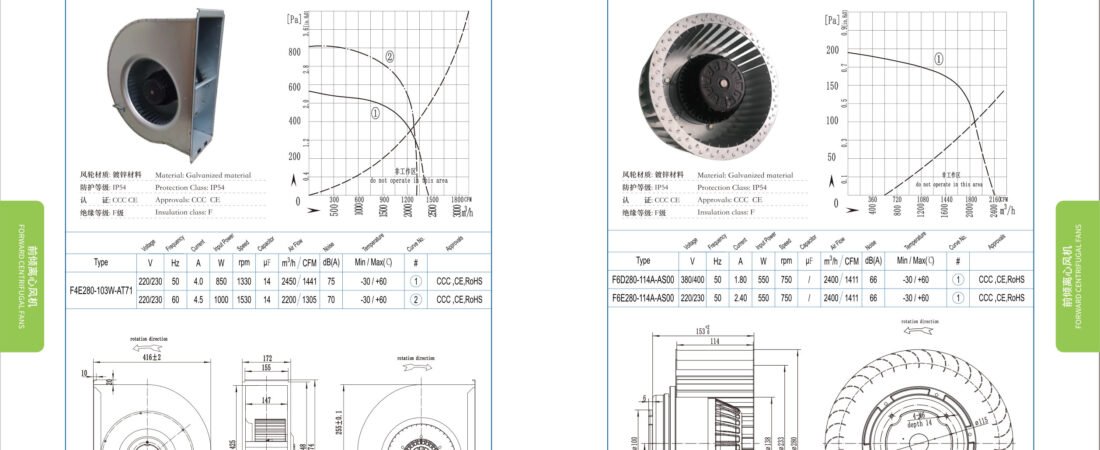

Full technical specifications are shown in the catalog image. Contact us for detailed datasheets and drawings.
Technical Specifications
| Model Code | Voltage (V) | Frequency (Hz) | Current (A) | Power (W) | Speed (rpm) | Airflow (m³/h) | Airflow (CFM) | Noise (dB) | Temp (°C) |
|---|---|---|---|---|---|---|---|---|---|
| F4E280-103W-AT71 | 220/230 | 50 | 4.0 | 850 | 1330 | 2450 | 1441 | 75 | -30/+60 |
| F4E280-103W-AT71 | 220/230 | 60 | 4.5 | 1000 | 1530 | 2200 | 1305 | 70 | -30/+60 |
