Axial Fans
-
EC Axial Fan ∅400
Axial fan built on an external-rotor motor platform. High airflow at low static pressure — ideal for ventilation, condenser and cooling applications. Technical Specifications Model Code Curve Voltage (V) Frequency (Hz) Speed (rpm) Power (W) Current (A) Noise (dB) Temp (°C) B3P400-EC102-100 ① 220 50/60 1500 270 1.25 72 -25~+60 B3P400-EC102-001 ① 220 50/60 1430…
-
EC Axial Fan ∅315
Axial fan built on an external-rotor motor platform. High airflow at low static pressure — ideal for ventilation, condenser and cooling applications. Technical Specifications Model Code Curve Voltage (V) Frequency (Hz) Speed (rpm) Power (W) Current (A) Noise (dB) Temp (°C) F3P315-EC188-001 ① 3~380 50/60 1070 2400 4.0 81 -25~+60 A3P315-EC092-100 ① 220 50/60 2100…
-

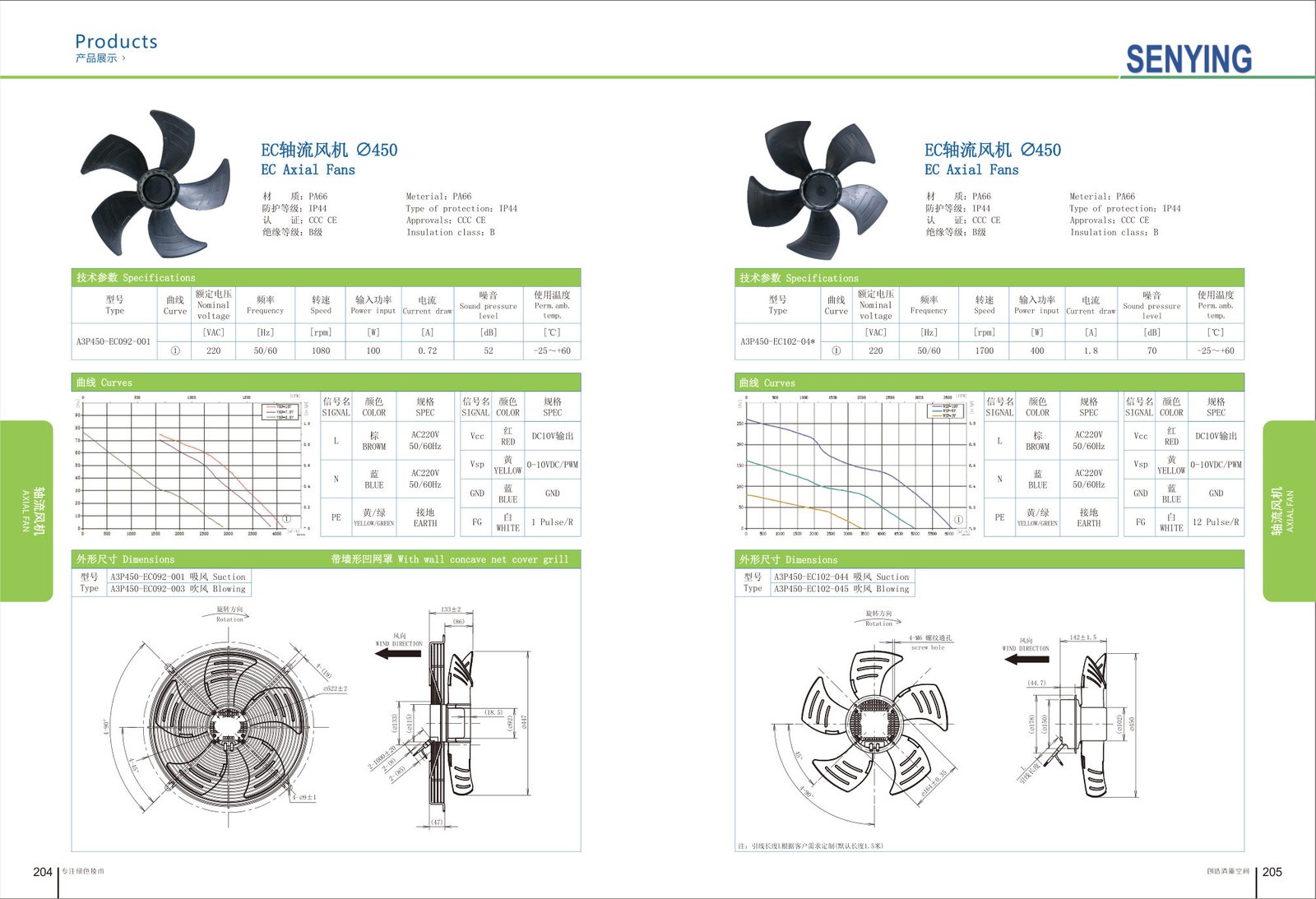

EC Axial Fan ∅450
Axial fan built on an external-rotor motor platform. High airflow at low static pressure — ideal for ventilation, condenser and cooling applications. Technical Specifications Model Code Curve Voltage (V) Frequency (Hz) Speed (rpm) Power (W) Current (A) Noise (dB) Temp (°C) B3P450-EC102-100 ① 220 50/60 1100 260 1.2 70 -25~+60 B3P450-EC137-200 ① 220 50/60 1450…
-
EC Axial Fan ∅500
Axial fan built on an external-rotor motor platform. High airflow at low static pressure — ideal for ventilation, condenser and cooling applications. Technical Specifications Model Code Curve Voltage (V) Frequency (Hz) Speed (rpm) Power (W) Current (A) Noise (dB) Temp (°C) B3P500-EC137-100 ① 3~380 50/60 1100 870 1.46 71 -30~+60 B3P500-EC137-010 ① 3~380 50/60 1100…
-

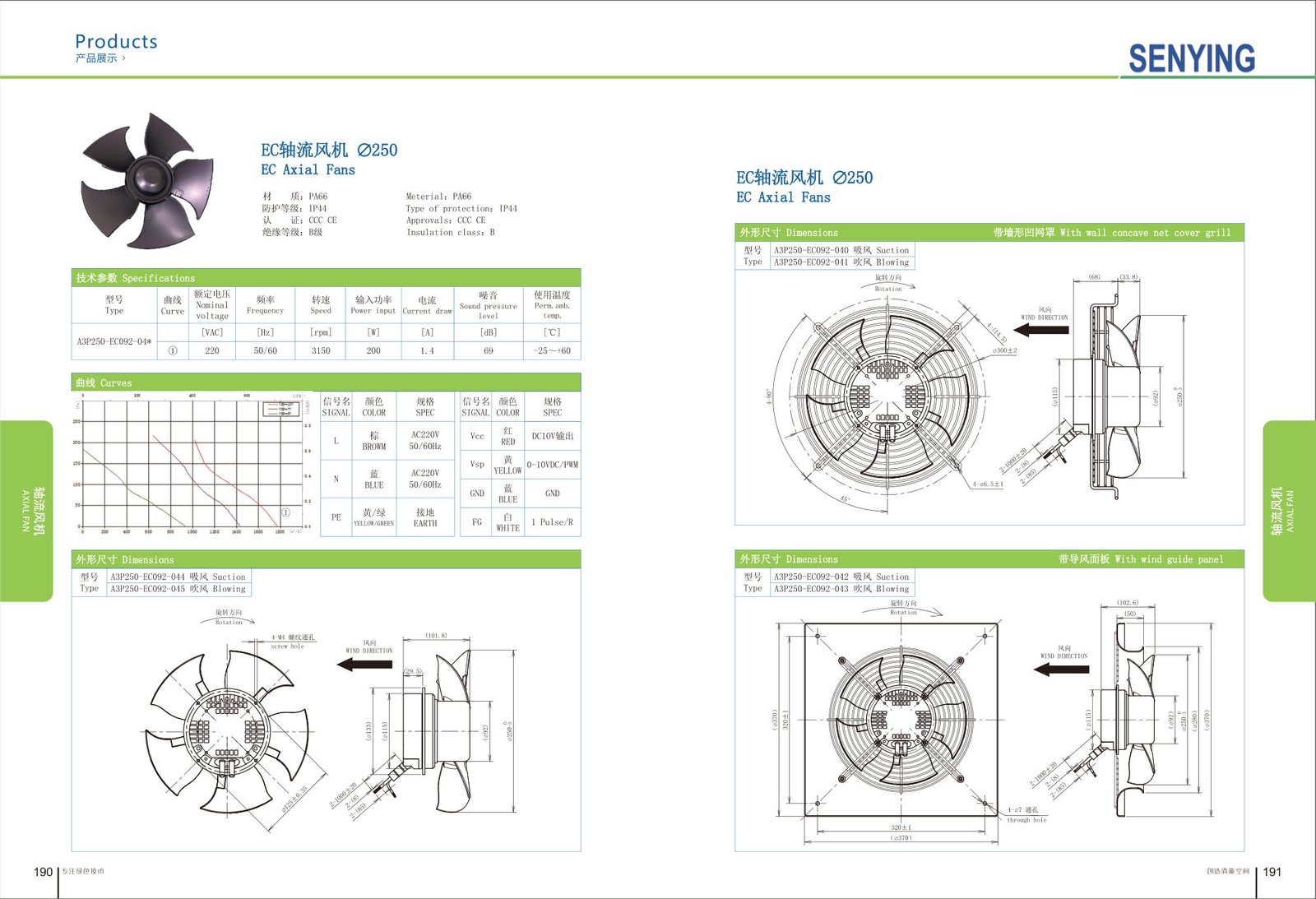

EC Axial Fans ∅250
Axial fan built on an external-rotor motor platform. High airflow at low static pressure — ideal for ventilation, condenser and cooling applications. Technical Specifications Model Code Curve Voltage (V) Frequency (Hz) Speed (rpm) Power (W) Current (A) Noise (dB) Temp (°C) B3P250-EC072-060 ① 220 50/60 2150 90 0.8 68 -25~+60 B3P250-EC072-902 ① 220 50/60 3000…
-
EC Axial Fan ∅300
Axial fan built on an external-rotor motor platform. High airflow at low static pressure — ideal for ventilation, condenser and cooling applications. Technical Specifications Model Code Curve Voltage (V) Frequency (Hz) Speed (rpm) Power (W) Current (A) Noise (dB) Temp (°C) A3P300-EC072-*** ① 220 50/60 1400 80 0.57 63 -25~+60 A3P300-EC092-04* ① 220 50/60 2100…
-
EC Axial Fan ∅250
Axial fan built on an external-rotor motor platform. High airflow at low static pressure — ideal for ventilation, condenser and cooling applications. Technical Specifications Model Code Curve Voltage (V) Frequency (Hz) Speed (rpm) Power (W) Current (A) Noise (dB) Temp (°C) B3P250-EC072-060 ① 220 50/60 2150 90 0.8 68 -25~+60 B3P250-EC072-902 ① 220 50/60 3000…
-
EC Axial Fan ∅200
Axial fan built on an external-rotor motor platform. High airflow at low static pressure — ideal for ventilation, condenser and cooling applications. Technical Specifications Model Code Curve Voltage (V) Frequency (Hz) Speed (rpm) Power (W) Current (A) Noise (dB) Temp (°C) F3P200-EC102-006 ① 220 50/60 1400 280 1.6 64 -25~+60 F3P200-EC102-100 ① 220 50/60 1150…
-

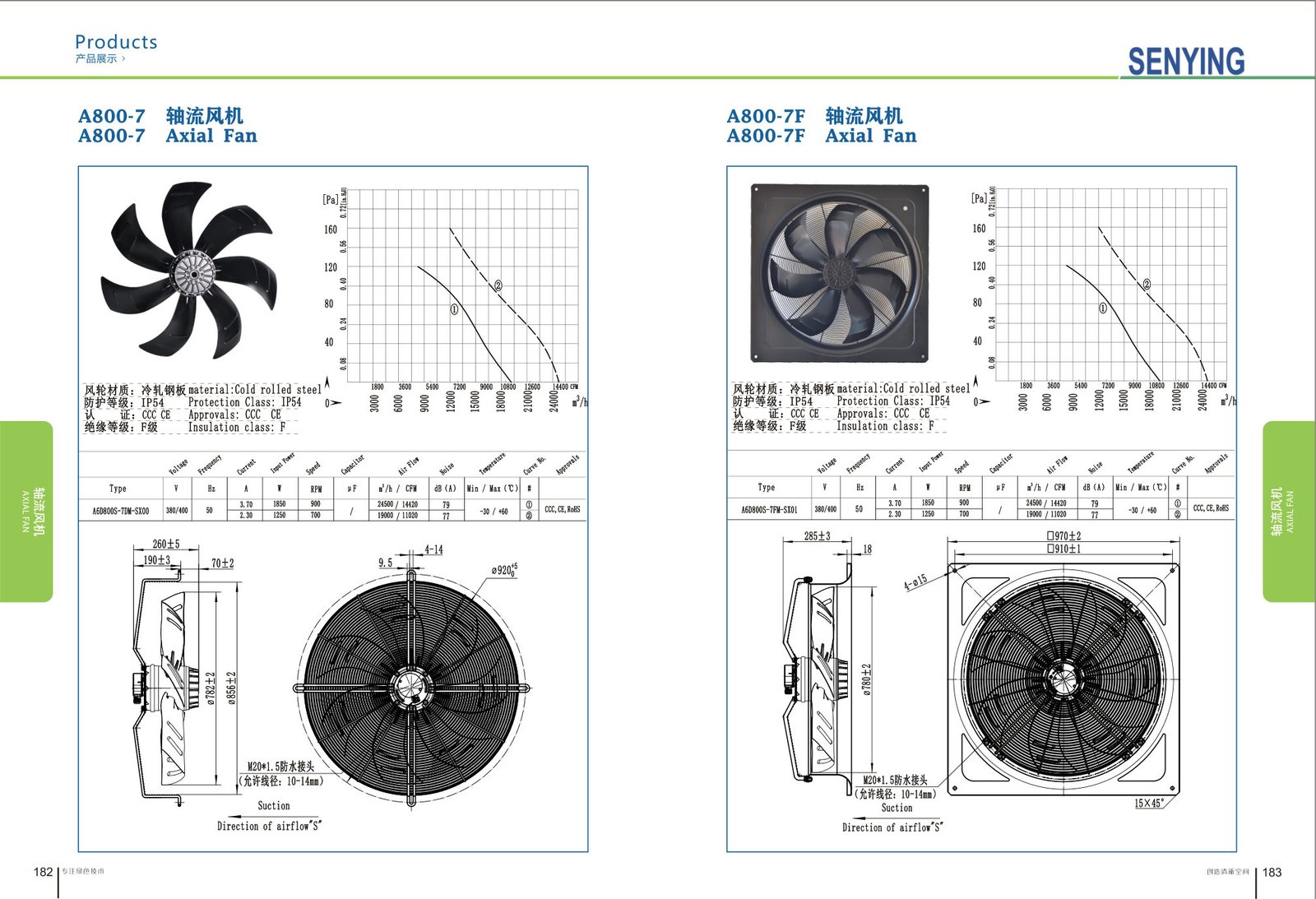

A800-7F External Rotor Motor Axial Fan
The air flow in the same direction as the axis of the fan blade, such as the electric fan and the fan outside the air conditioner, is the axial flow fan. It is called “axial flow” because the gas flows parallel to the fan shaft. Axial flow fans are usually used in situations with high…
-
A800-7 External Rotor Motor Axial Fan
The air flow in the same direction as the axis of the fan blade, such as the electric fan and the fan outside the air conditioner, is the axial flow fan. It is called “axial flow” because the gas flows parallel to the fan shaft. Axial flow fans are usually used in situations with high…
