The fan is composed of external rotor asynchronous motor, plastic/aluminum impeller, etc. The motor has low temperature rise and has special advantages of ventilation, heat dissipation, self-cooling, etc. Thus, the reliability of fan service life is extended. The fan is a backward curved impeller, which has the characteristics of compact structure, large air volume, high static pressure, small vib

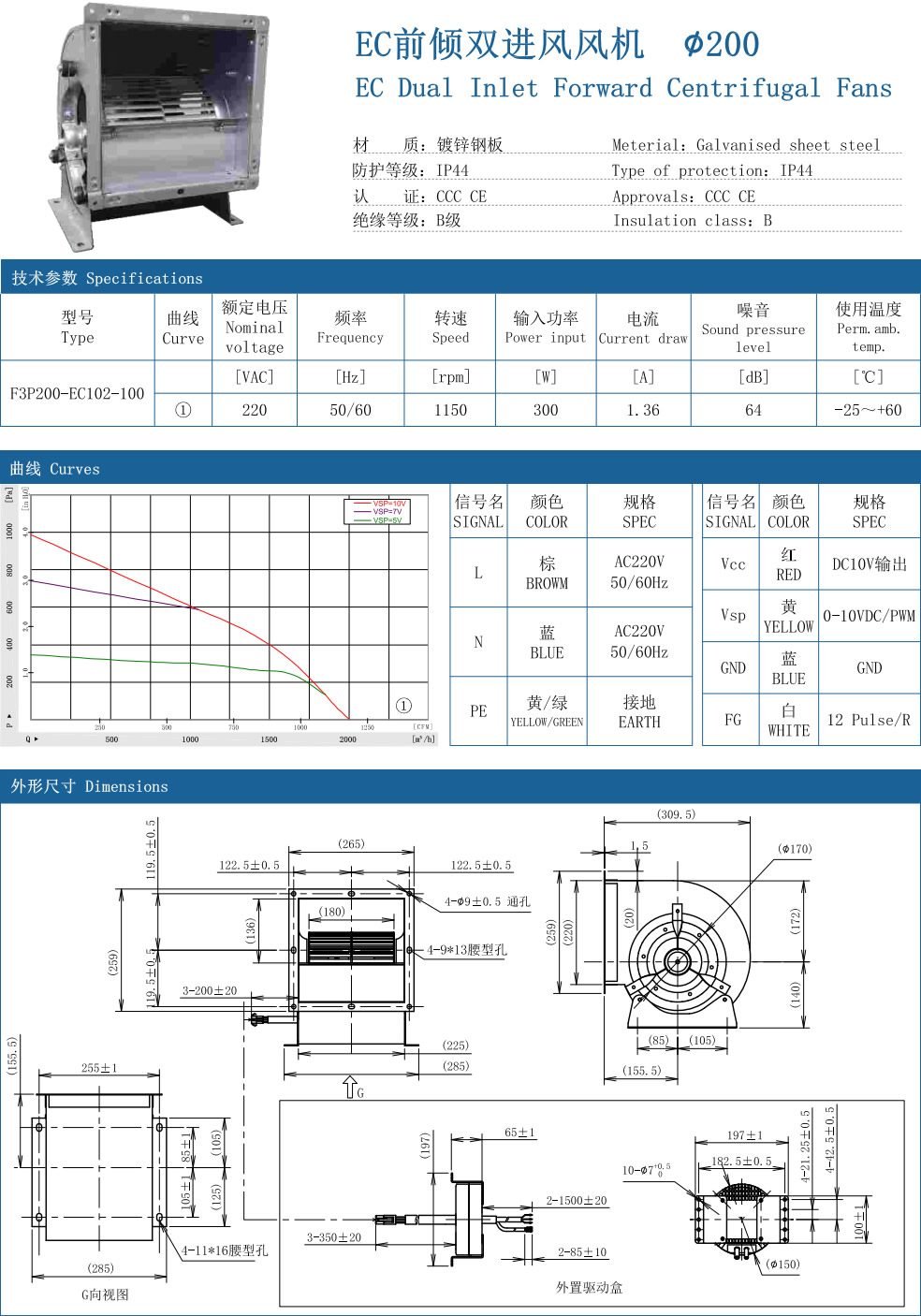

Technical Specifications
| Model Code | Curve | Voltage (V) | Frequency (Hz) | Speed (rpm) | Power (W) | Current (A) | Noise (dB) | Temp (°C) |
|---|---|---|---|---|---|---|---|---|
| F3P200-EC102-006 | ① | 220 | 50/60 | 1400 | 280 | 1.6 | 64 | -25~+60 |
| F3P200-EC102-100 | ① | 220 | 50/60 | 1150 | 300 | 1.36 | 64 | -25～+60 |
| A3P200-EC072-*** | ① | 220 | 50/60 | 2600 | 80 | 0.6 | 54 | -25～+60 |
| A3P200-EC092-*** | ① | 220 | 50/60 | 3000 | 55 | 0.4 | 60 | -25～+60 |
